Electric supply lines
They supply electric power to mobile devices, especially hoists and cranes, along their runways.
There are three main types:
- Festoon systems with flat cable.
- Enclosed conductor systems.
- Cable reels.
- They consist of a profile parallel to the runway, inside which run carriages from which hang the feed hoses, usually flat, although they can also be round.
- It is complete with accessories for the connection of profiles, supports, stops, etc.

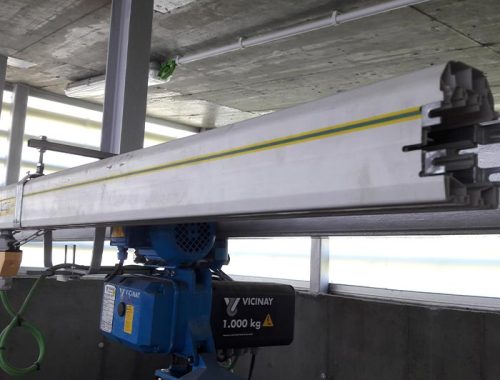

- They consist of a PVC profile parallel to the runway, inside which there are copper plates, normally square (three phases + ground), although they can have more depending on specific needs.
- A current collector trolley runs inside this profile to power the crane or hoist.
- It is also completed with splices. supports, suspensions, etc.
- This is a drum on which the round power cable is wound or unwound.
- It can be fixed or rotating depending on the type of runway, curved or straight.
- In the latter case it must be rotating if it is placed in the center of the runway in order to reach both ends.
- The action of winding the cable inside the drum can be done by means of a spring or an electric motor.
- In all three cases, the section of the hoses or bars will depend on the maximum admissible current required, depending on the power of the motors, type of starter, length, etc.
- All three systems can be used on curved runways.
- The drum winder is most commonly used in the case of track changes, and especially on outdoor gantries.
GROUP
OF EXPERTS
Vicinay Cemvisa has a highly qualified professional team for the design and manufacture of its equipments.
QUALITY DEPARTMENT
Guarantees that the design and manufacture made in accordance with the company’s standard procedures and the applicable FEM regulations in force.
INTENSIVE STUDY
Once manufactured every equip is subjected to strict load tests.
DELIVERY
and warranty
Delivered with a user’s manual and instructions, complete exploded view and warranty of 12 months extendable to 36 months.
